Inlet Duct (Industrial System): Principles and Uses

21/07/2025

One crucial element in enhancing the performance and ensuring the safety of industrial machinery systems is the piping system, particularly the inlet duct. In this article, we will examine the concept, function, and extensive applications of this specialized industrial product.

Table of Contents

1 What is an inlet duct? Fundamental Concept

2 Primary Roles of Inlet Duct in Industrial Section.

3 Extensive Use in Industrial Settings

What is an inlet duct? Fundamental Concept

An inlet duct (also known as an air inlet duct or air intake duct) is a crucial component of various industrial machinery and equipment systems. Essentially, it is a pipe or channel designed primarily to gather and transport a flow of liquid or gas (typically air) from the external environment into another part or system, such as an engine, turbine, air compressor, or ventilation system.

The design of the inlet duct is frequently refined to reduce pressure loss and airflow turbulence, guaranteeing that the airflow remains smooth and consistent and satisfies the necessary flow rate. The materials utilized in the construction of the inlet duct are quite varied, depending on the operating conditions and the type of conductor, which may include stainless steel, aluminum, composite, or specialized plastic.

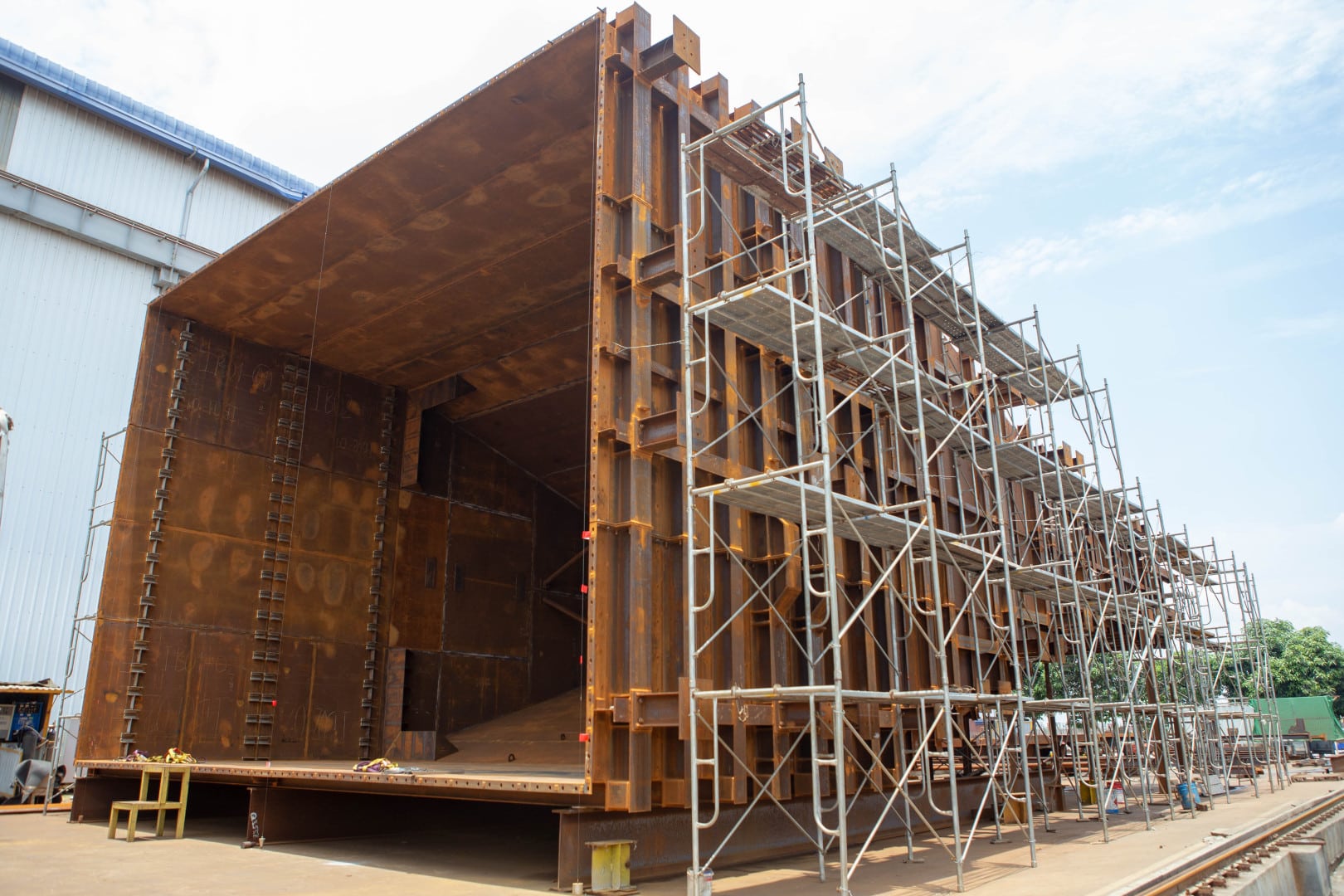

Inlet Duct

Primary Roles of Inlet Duct in Industrial Section.

The inlet duct serves a crucial role, fulfilling numerous essential functions within industrial systems:

1. Air and Liquid Flow Direction and Collection

The primary function of an inlet duct is to direct the flow of air or liquid from the external environment or a designated area to the necessary location. This guarantees that the essential source of raw materials or air is consistently and effectively delivered to the machine’s operational processes.

2. Enhance Flow and Pressure

The geometric configuration of the inlet duct significantly affects the flow and pressure of the media stream. A properly designed and manufactured inlet duct will assist:

Reduce pressure loss: Prevent significant pressure drop, which leads to energy waste and diminishes system efficiency.
Ensure a consistent flow: Supply an adequate and regular quantity of gas or liquid to the device, facilitating stable operation and maximizing its capacity.
Reduces flow turbulence: Decreases the occurrence of undesirable turbulent flows, which may lead to noise, vibration, and diminished performance.

3. Safeguard and Shield the System

In numerous instances, inlet ducts also include filtration elements designed to eliminate dirt, solid particles, or other pollutants from the incoming air stream. This is particularly crucial for safeguarding delicate machine components like turbine blades, engine cylinders, or air compressors from wear and damage, thereby extending the lifespan of the equipment.

4. Regulation of Temperature and Humidity

In certain specialized applications, this may be engineered to regulate the temperature or humidity of the incoming airstream. For instance, in air conditioning systems or temperature-sensitive manufacturing processes, inlet ducts can be insulated or include cooling/drying components.

5. Sound Dampening

The appropriate design can significantly aid in minimizing noise produced by the system, particularly in scenarios involving large motors or fans. The configuration and material of the duct can be refined to absorb or redirect sound waves.

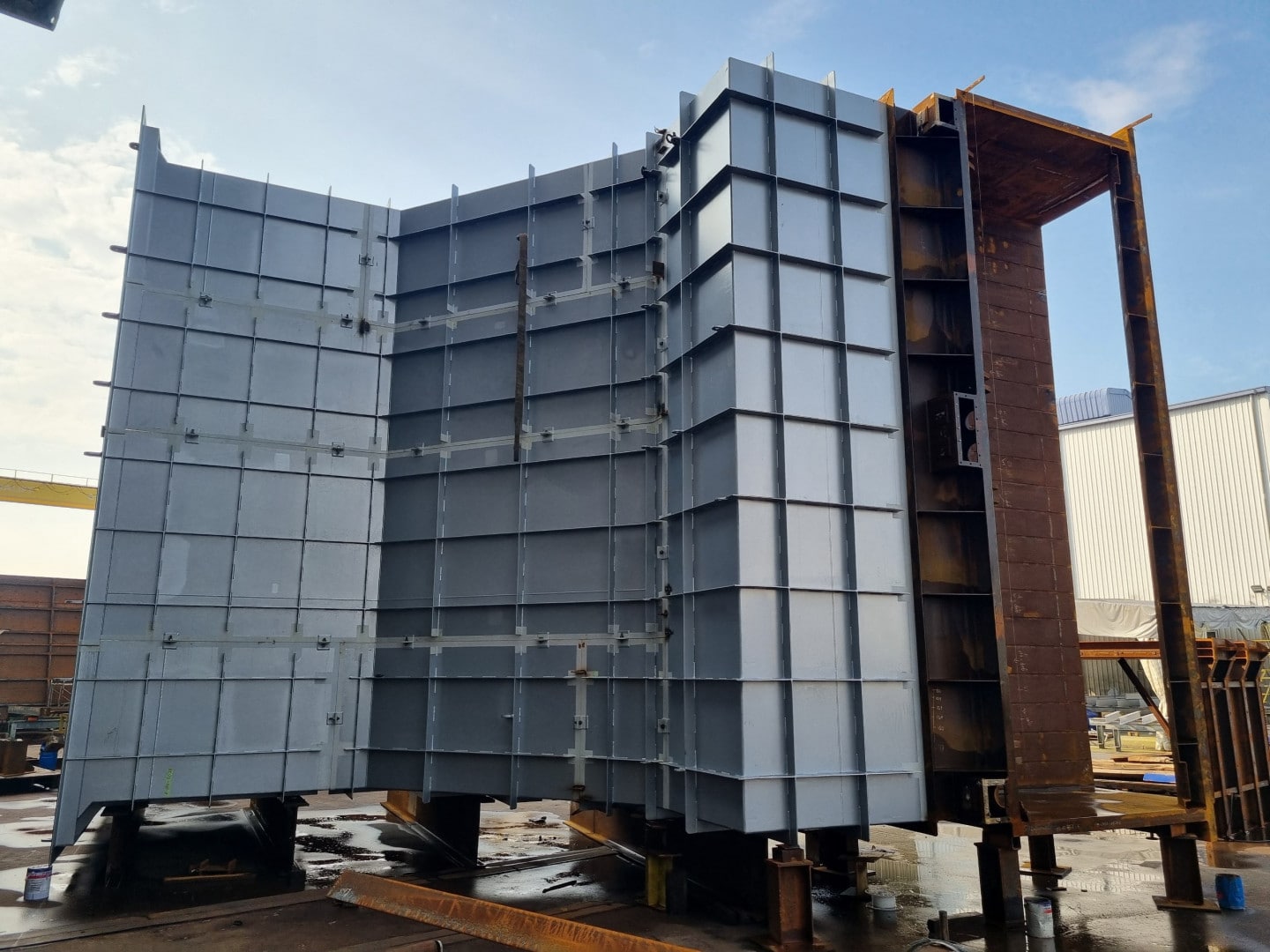

Inlet Duct 3

Extensive Use in Industrial Settings

These are found in nearly every industry, including manufacturing, energy, transportation, and construction. Below are some common examples of their applications:

1. Aerospace and Automotive Sector

Aircraft and Automotive Engines: Inlet ducts channel air into the engine’s combustion chamber, where it is combined with fuel to facilitate combustion. Effective inlet duct design is essential for maximizing engine performance and fuel efficiency.

Ventilation and cooling systems: In vehicles, inlet ducts serve to channel cooling air to various components, including the brakes, radiator, or cabin.

2. Energy Sector

Power plant (gas turbine, steam turbine): The inlet duct delivers clean air to the gas turbine for fuel combustion or steam to the steam turbine. The cleanliness and consistent flow of air or steam are crucial for safeguarding the turbine blades and ensuring optimal power generation efficiency.

Factory cooling system: Air supply for cooling large-capacity equipment.

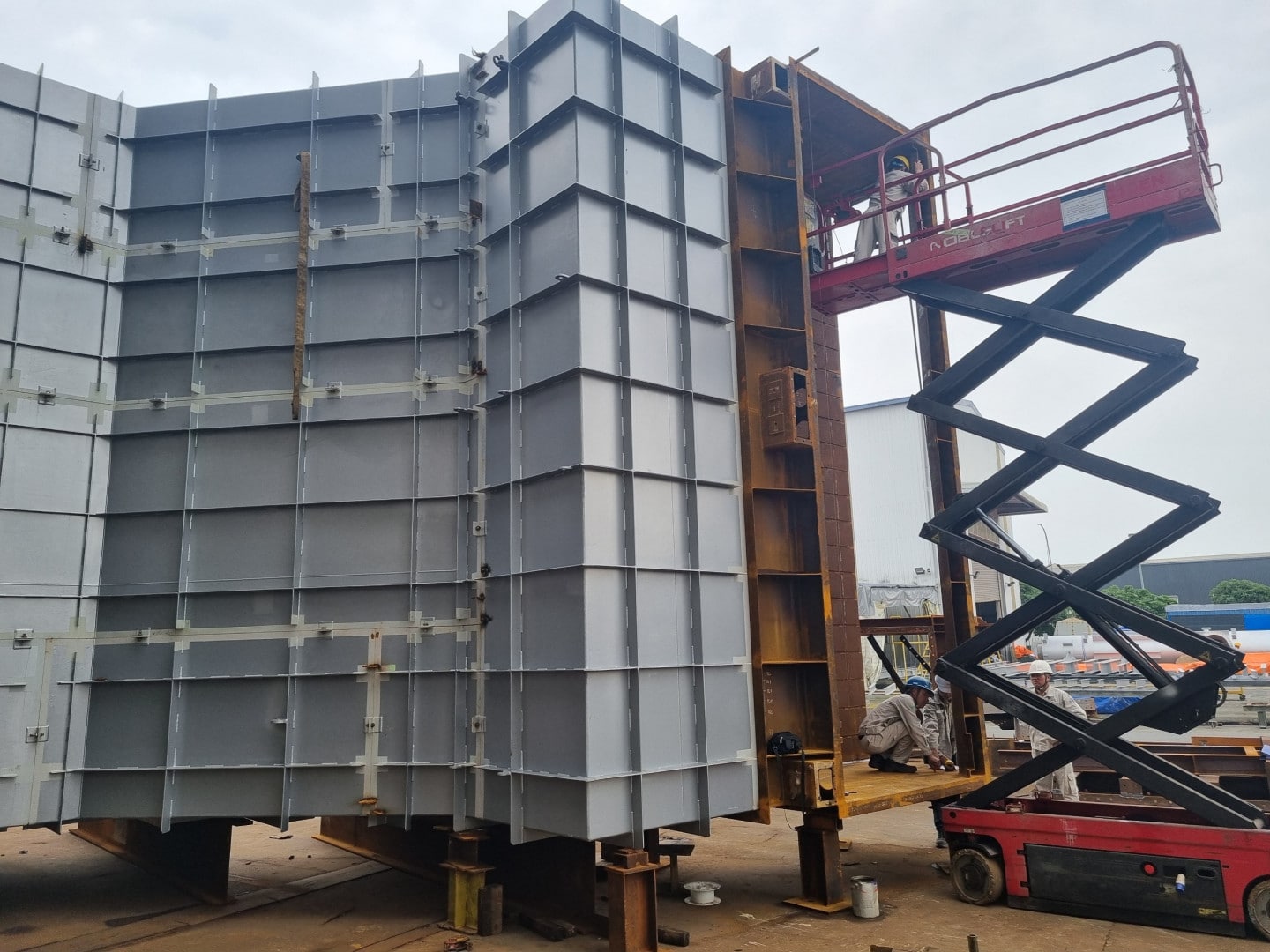

Z5417901810255 24b4a96f510c00a64dac5b227210d6a4

3. Production and Processing Sector

Air Compressor: The inlet duct provides air to air compressors, which are utilized in various manufacturing processes, including the operation of pneumatic tools, conveyor systems, and paint spraying.

Industrial dust extraction and ventilation system: Transports contaminated air from the production area to the filtration system, guaranteeing a safe and clean working environment.

Kiln, drying oven: Introduce hot gas or clean air into the oven to sustain temperature and facilitate the burning or drying process.

4. Shipping Sector

Marine Engines: Like automobiles and aircraft, inlet ducts provide air to marine engines, guaranteeing performance and reliability during operation at sea.

The ship’s ventilation system facilitates air circulation within the compartments of the ship.

5. Additional Applications

HVAC (Heating, Ventilation, and Air Conditioning) System: In extensive buildings and industrial zones, this serves as a component of the HVAC system to distribute conditioned air.

Generator: Supplies air for the combustion process of the generator engine.

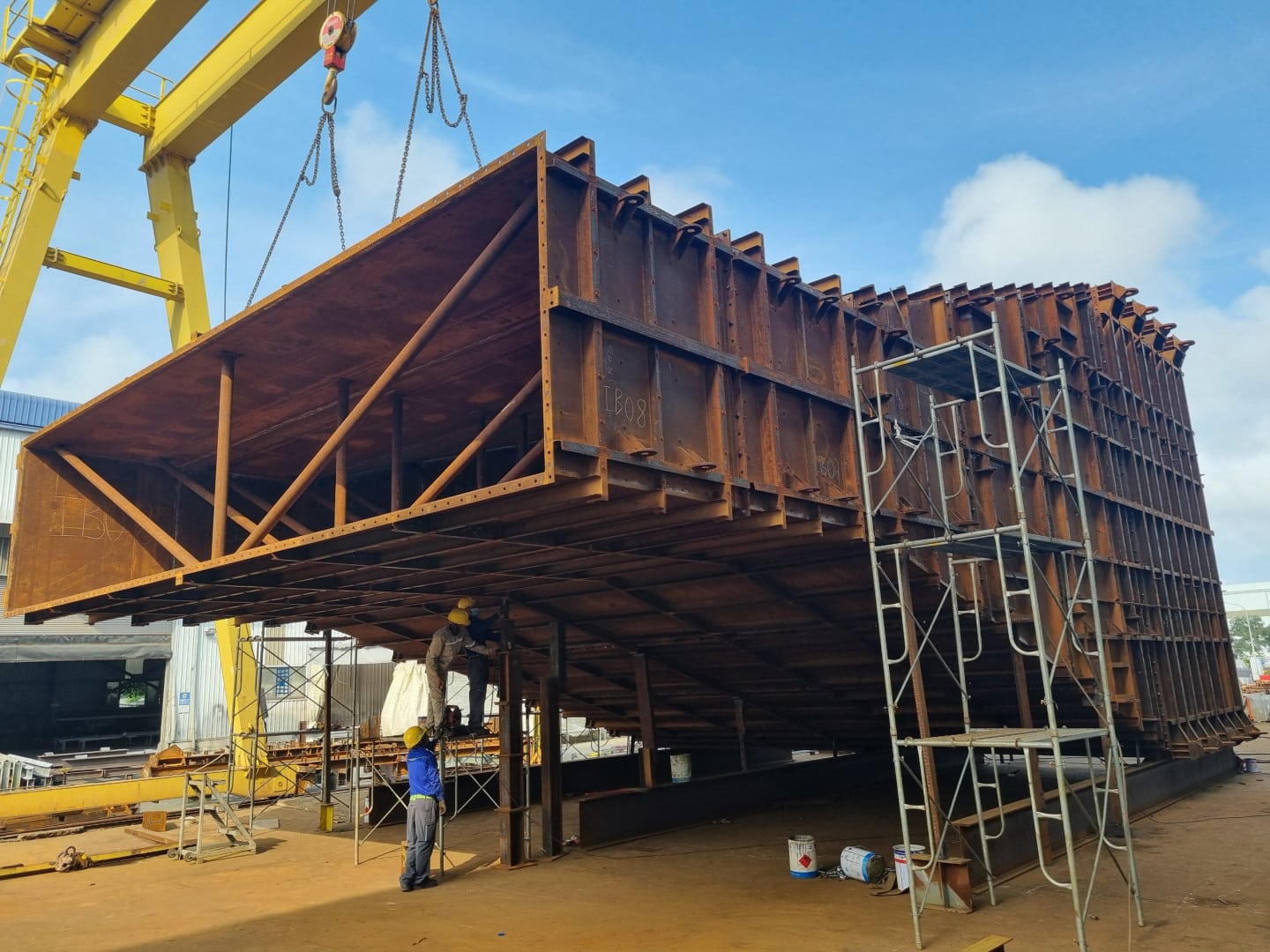

Inlet Duct 4

Conclusion

The manufacturing process of the inlet duct system involves more than just cutting and welding metal. It is a highly technical procedure that demands precision, expertise, and advanced technology to guarantee that the final product adheres to stringent standards of performance, durability, and safety. Acknowledging the significance of this, Viet Han Engineering takes pride in being a reliable partner in the realm of inlet duct system manufacturing.
